Fox EVO Inverter Testing: Built for South African Power Challenges

South Africa’s power landscape is unique: frequent load shedding, unstable grids, and sudden inrush currents make life tough for both installers and their clients. That’s why MSPD Africa carried out rigorous Fox EVO inverter testing in our lab — so installers can see first-hand how this next-generation system performs under real-world South African conditions.

Putting the Fox EVO to the Test

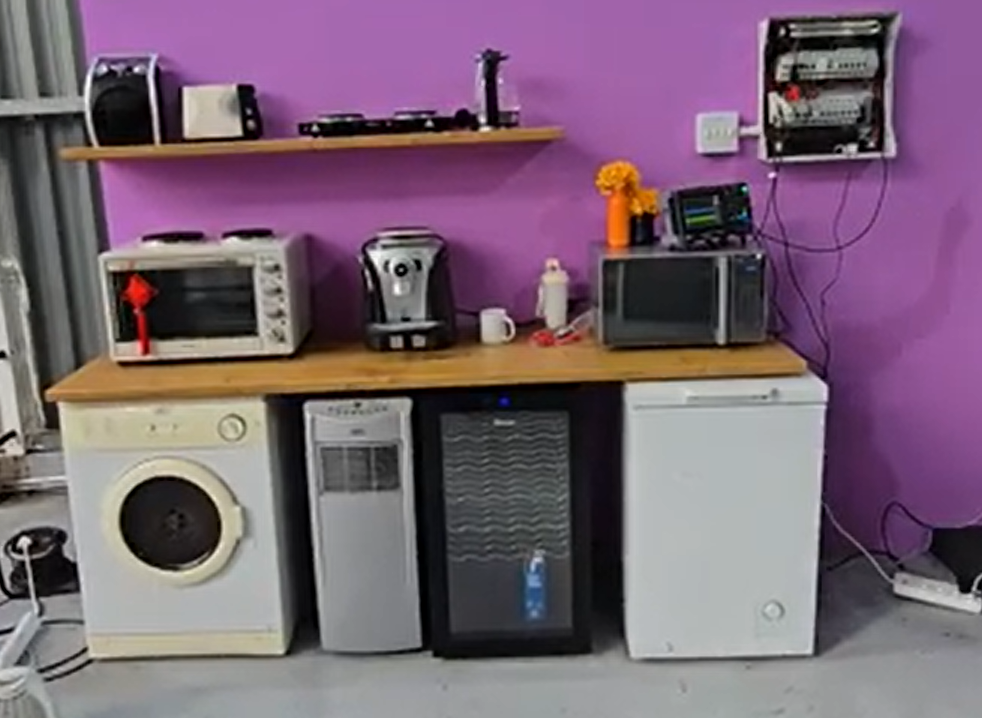

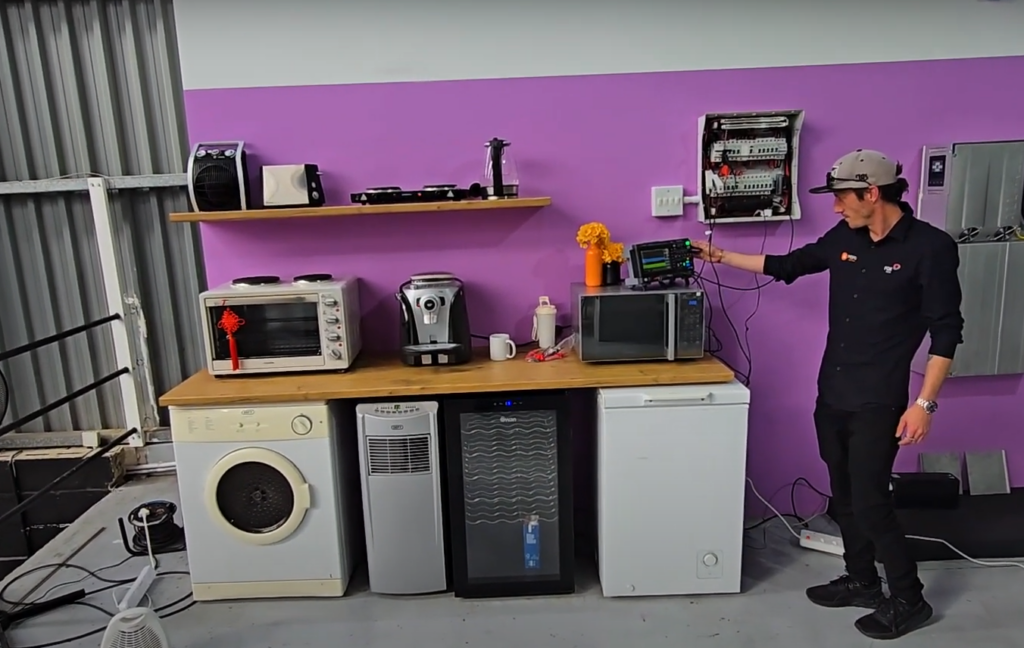

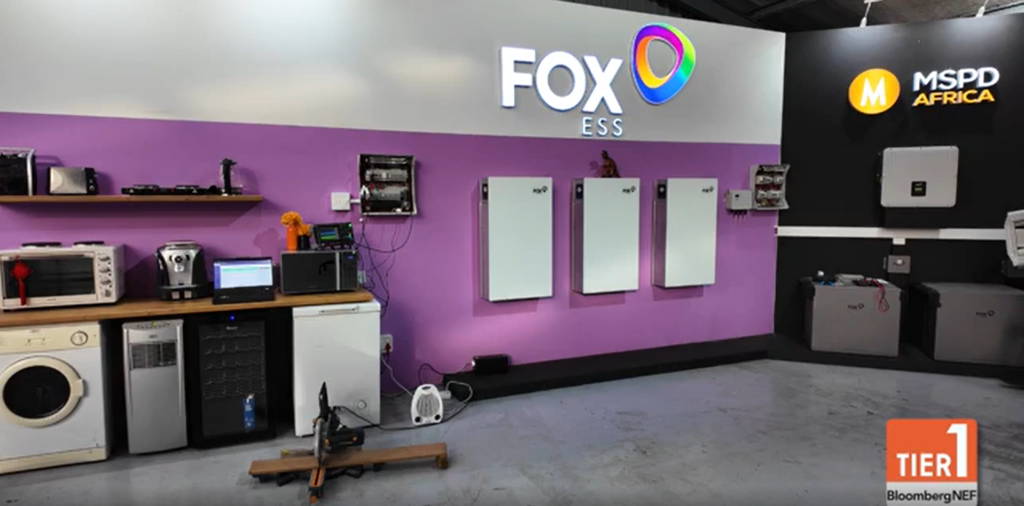

At our MSPD Africa Lab, we ran three Fox EVO units in parallel and pushed them against “the enemies of hybrid inverters” — ovens, heaters, kettles, tumble dryers, air conditioners, and more. In other words, the kind of heavy, unpredictable loads South African households face every day.

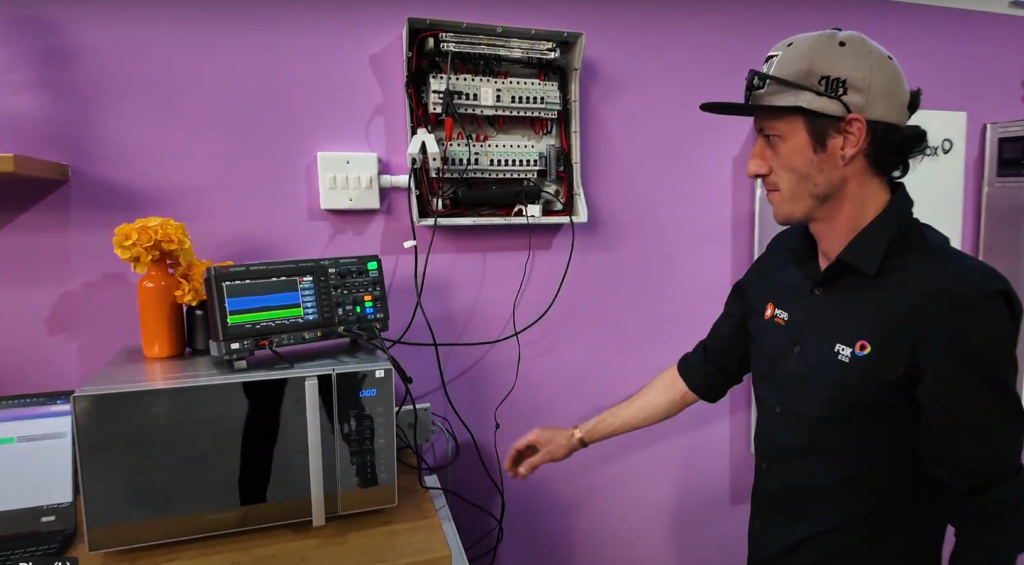

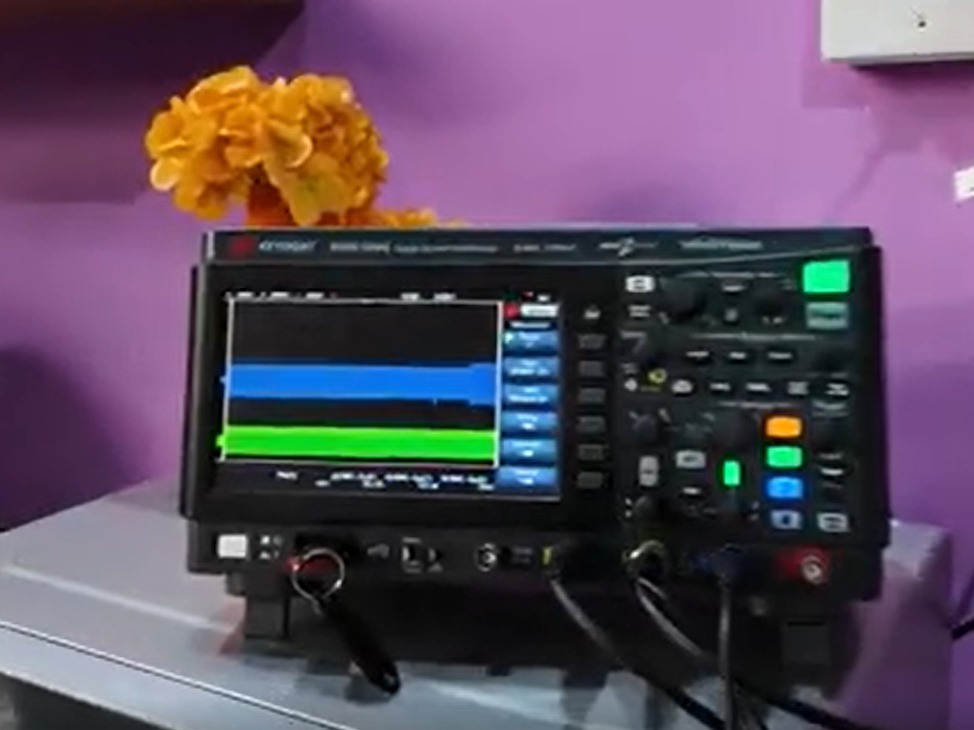

• In one test, the EVOs ran in backup (EPS) mode, smoothly handling loads of up to 16kW across three inverters, with a peak inrush current of 153A captured on the oscilloscope.
• In another test, a single Fox EVO unit ran at 10kW sustained output, peaking at 84A inrush current, well above its rated current — without a hitch.

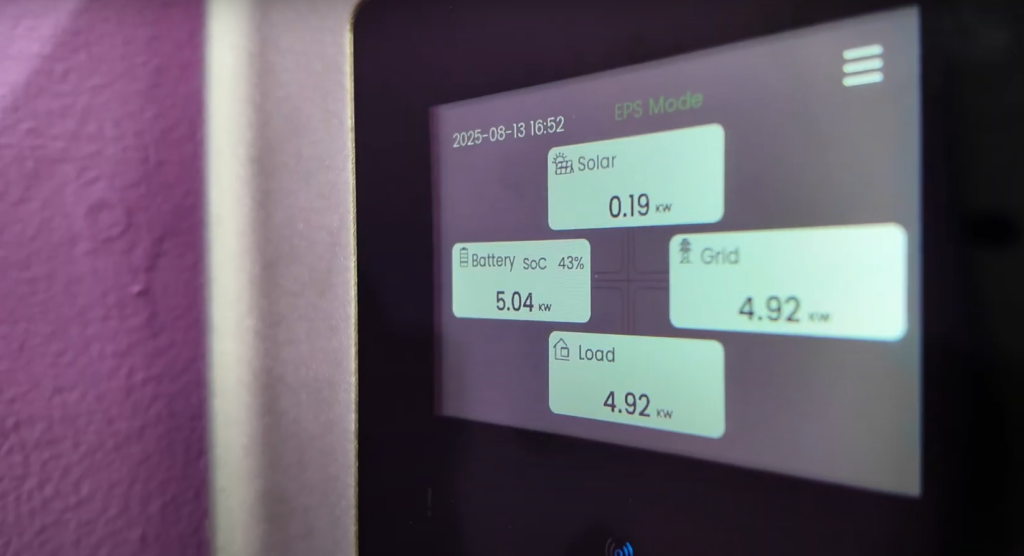

• Even with a lower battery state of charge (37–43%), the system still managed to hold steady under multiple appliances switching on and off, including the high surge demand of tumble dryers and kettles.

These results prove that the Fox EVO doesn’t just meet its specs — it exceeds them, absorbing spikes and keeping loads stable in conditions where other inverters might trip or fail.

Why Fox EVO inverter testing matters for installers

For South African installers, reliability during load shedding and grid failure isn’t optional — it’s the difference between a satisfied client and a callback. The Fox EVO’s ability to:

• Handle extreme inrush currents (up to 153A recorded in testing)
• Run at full output even under heavy, varied loads
• Stay stable during Eskom grid fluctuations
• Scale with parallel installations up to significant system sizes

…makes it one of the most installer-friendly choices on the market. Clients get resilience and peace of mind, while installers gain fewer callouts, faster installations, and a system they can confidently recommend.

The Future-Proof Choice

By proving itself against South Africa’s toughest electrical conditions, the Fox EVO shows that it’s more than just a hybrid inverter — it’s a solution built for Africa’s energy reality.

At MSPD Africa, we back this with certified training and local support, with stock available from our warehouses in Cape Town and Johannesburg. Because when your clients ask for solar that just works, the Fox EVO delivers.

Let’s GO Fox!
