When retrofitting or installing high-output solar systems for large homes, estates, or small businesses, traditional low-voltage battery setups often hit a bottleneck: high current draw. High current creates electrical losses, generates excessive heat, and accelerates battery degradation. Furthermore, complex distribution board (DB) wiring turns simple residential jobs into full-day headaches for your installation teams.

Solar contractors need a 10.5kW single phase inverter that delivers higher round-trip efficiency without wasting valuable labor hours on site. To solve this, MSPD Africa has introduced the Fox ESS 10.5kW Single Phase Hybrid Inverter. Built around advanced 400 Volt Architecture, this residential inverter sets a standard for thermal management, battery longevity, and rapid, hassle-free installation.

The 400V Architecture Advantage: Lower Current, Higher Efficiency

The primary driver behind the Fox 10.5’s exceptional performance is its advanced 400V architecture. By raising the operating voltage of the paired high-voltage battery system (supporting up to 4 x EP11 batteries), the inverter draws significantly less current to deliver the exact same power output:

$P = V \times I$

In practical terms, lowering the operating current delivers three major engineering benefits that you can use as strong selling points to close deals with homeowners:

Dramatically Reduced Heat Losses: Electrical losses within battery cables and cells increase with the square of the current ($I^2R$). Explain to your clients that operating at 400V minimizes these resistive losses, ensuring less energy is wasted as heat and more of their generated solar power actually reaches their home appliances.
Superior Charge/Discharge Efficiency: Reduced thermal losses translate directly to higher round-trip efficiency during both rapid solar charging windows and heavy off-grid discharging cycles during load shedding.
Extended Battery Lifespan: Thermal and electrical stress are the primary causes of Lithium-ion cell degradation. By keeping operating currents low, the 400V design protects high-voltage battery modules, extending the total operational lifespan and safeguarding the homeowner’s long-term investment.

Technical Specs: 10.5kW Output & 15kWp PV Input

Power output and solar array capability perfectly match the advanced 400V design, giving installers the headroom needed for demanding residential sites.

Continuous Output & Surge: The Fox 10.5 delivers 10.5kW of continuous single-phase power, with a robust surge capacity of up to 12kW peak for 60 seconds to easily handle heavy household inrush currents like air conditioners, boreholes, and swimming pool pumps.
Massive PV Input: To keep high-capacity battery banks fully charged during short winter solar windows, the inverter supports up to 15kWp of solar panel input.
Advanced Tracking: It features 4 integrated next-generation 16A MPPTs, giving installation teams ultimate design flexibility when stringing arrays across complex residential roof layouts with multiple angles and shading issues.
Scalability: For larger luxury estates, multi-tenant properties, or light commercial sites requiring extra capacity, the system supports parallel installation of up to 10 units.

Installer Enablement: Common-Neutral Design and Fast Setup

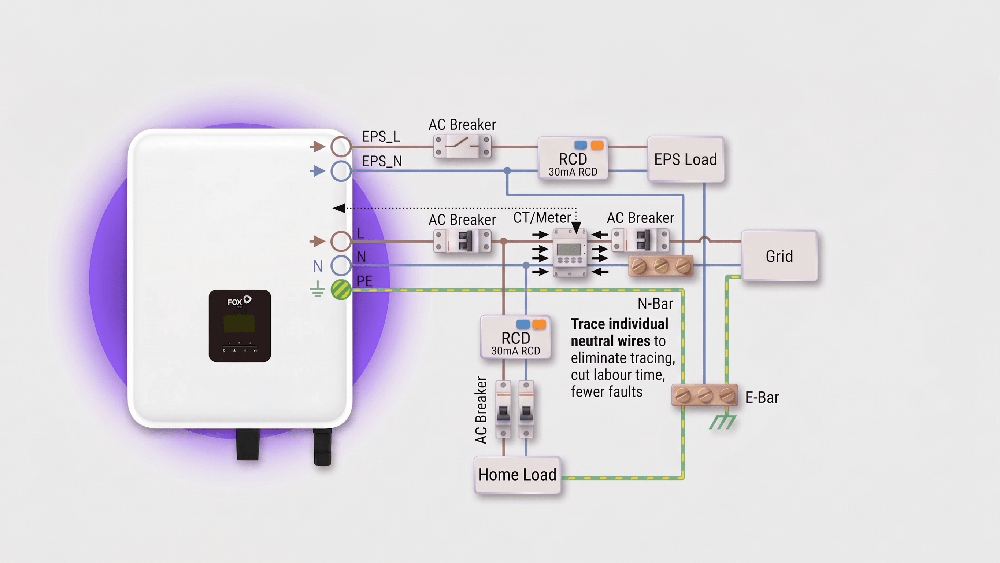

Beyond electrical efficiency, the Fox 10.5 hybrid unit is engineered specifically to maximize your team’s productivity on site. One of its most significant physical design features is its Common Neutral Architecture.

Historically, connecting backup power circuits required electricians to painstakingly identify, trace, and isolate individual neutral wires through a congested distribution board. The Fox 10.5’s common-neutral topology eliminates neutral tracing entirely. This drastically reduces installation complexity, cuts labor hours per job, and minimizes the risk of common wiring errors.

Key installation and local support features include:

COCT NRS Approved: Fully certified for grid connection, ensuring smooth, hassle-free sign-offs and compliance for your Western Cape installations.
Plug-and-Play Connections: Pre-configured connection points allow installation teams to get systems online faster, allowing you to complete more jobs per week.
IP65 Weatherproof Rating: Dust-tight and sealed against water jets, allowing highly flexible indoor or outdoor mounting depending on the client’s available space.
Silent Passive Cooling: The unit uses a custom-designed heat sink to dissipate internal warmth silently, making it ideal for residential installations where fan noise is a major client complaint.
Comprehensive Safety Protection: Features integrated AFCI arc-fault protection, PV switches, surge protection devices (SPD), and overvoltage protections across all connections for complete peace of mind.
Local Support & Warranty: Backed by local RMA processing and technical support directly through MSPD Africa, ensuring your clients are covered and your reputation remains pristine.

Winning Residential Clients with Modern Design & Performance

For South African solar installers, delivering a clean, reliable, and aesthetically pleasing installation creates valuable word-of-mouth referrals. Pairing the Fox 10.5 single-phase residential inverter with up to four Fox ESS EP11 high-voltage batteries gives homeowners a sleek, premium look that blends seamlessly into modern homes while delivering uninterrupted, heavy-duty backup power.

This complete package offers solar contractors the ultimate competitive edge: lower thermal losses, accelerated DB installation time, and robust 400V battery performance.
